Our Products

Reverse Osmosis

Reverse Osmosis is water purifying technique that uses a semi permeable membrane to remove large particles from drinking water. This removes contaminants from water as water is pushed under pressure through the membrane. RO is the most cost effective demineralisation technology.

We provide RO plant for house hold, Mineral water plant, Medical and pharmaceutical and beverage companies, Dairy and other food processing companies, all customised as per the client requirements.

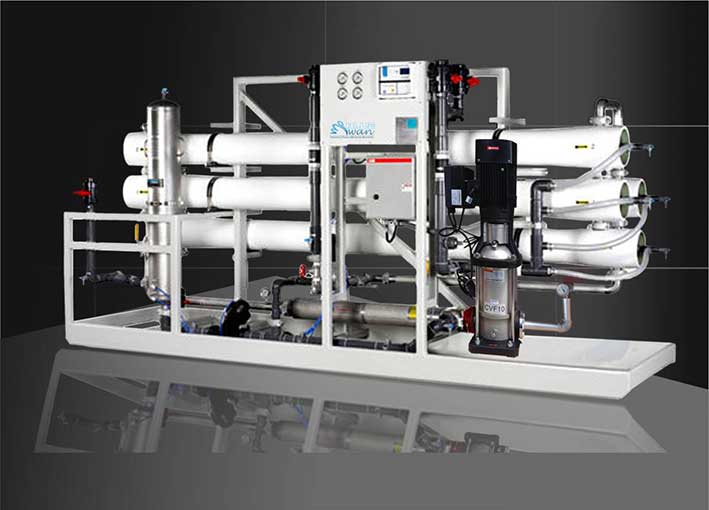

Reverse Osmosis Water Plant

Salient Features

  • Customised Design as per requirement
  • Intelligent RO with automated filteration process
  • Built in CIP
  • automation help to maitain health & hygiene
  • Improved membrane life & optimum purified water each time
  • Capacity 250-40000ltrs/hr
  • GSM modem provides online error information
  • Designed as per sample water at plant location
  • TWO PASS RO for Medical & Pharmaceutical Companies
Close

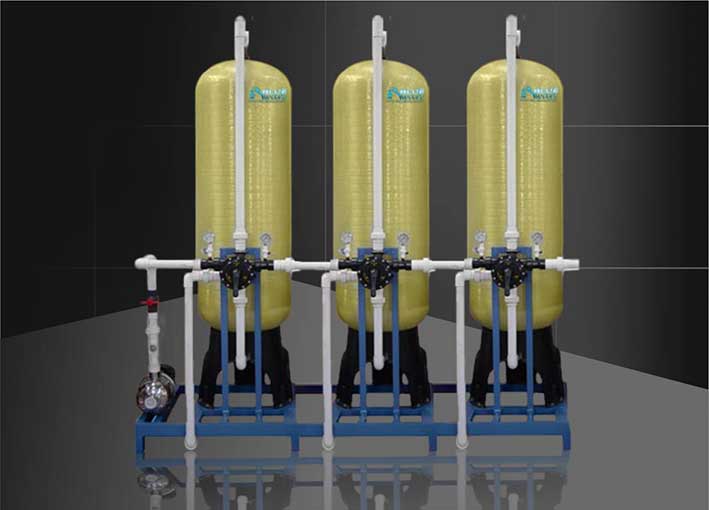

De-Mineralization Plant

Salient Features

Demineralization is the process of removing mineral salts from water by using the ion exchange process. It almost free water from any dissolved minerals that is purified where RAW water is passed via two polystyrene bead filled beds. Here the impurity ions present in the water is replaced by ions replaced by an ion exchanged resin. At Blue Swan we manufacture a wide range of two bed or mix bed Demineralisation plant for industrial process water customised as per client requirement. These plants are available in different sizes and is semi or fully automatic. We do complete revamping of the existing plant .

Uses of Demineralisation Plant

A demineralised plant purifies water and is used for Industrial high pressure boiler feed, Mineral water plant, computer chip manufacture use it for wash water, pharmaceutical process water, micro-electronics and other companies where purified water is required.

Close

Reverse Osmosis Water Plant

Salient Features

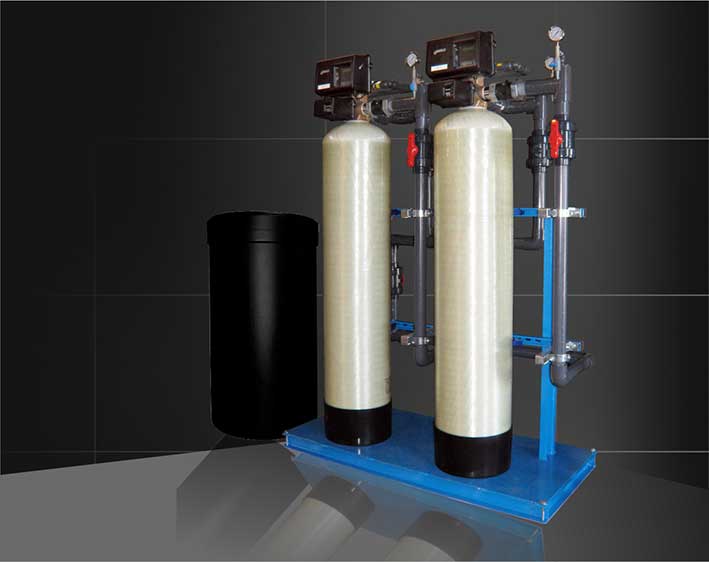

    Water Softer is used to reduce the hardness of water.

  • Sleek & compact design, space saving footprint.
  • Direct access to electronic function of the valve.
  • Blow moulded cabinet with injection mould cover & salt lid.
  • Large salt opening with easy detached snap-fit lid.
  • Moulded feature hold mineral tank in place.
  • Water Softening benifits

  • Reduces hardness of water.
  • No soap scum or Mineral deposit on skin.
  • Soap & shampoo lather better with Hair & skin feel soft & clean.
  • Soften water cleans dishes and utensils easily.
  • Clothes are softer, cleaner, brighter and last longer.
  • No mineral or scale deposit build up on bathroom fittings, appliances and other distributed water lines.
Close

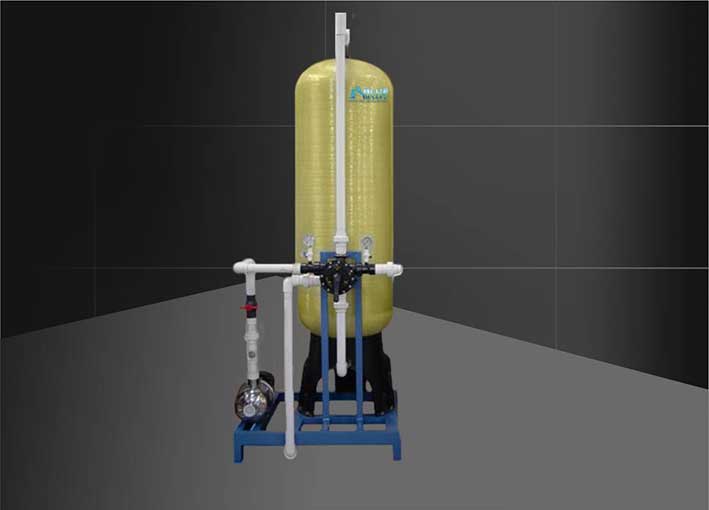

Iron Remover

Salient Features

Iron remover plant uses different media to remove Iron & magnesium concentrate, Oxygen level, Co2 content & hardness of water. It uses all natural process to soften the hard water while removing the manganese & hydrogen sulphide odours and also raises the PH level.

Iron remover plant preparation requires to know the kind of water it is going to purify along with other water chemistry. Therefore very iron remover is different from the other. It is designed specially for a particular requirement.

Close

Pet Blow Unit

Blue Swan offers series of fully automated & semi-automated PetBlow machine that can stretch up to 30ml-2000ml bottles and are widely used in blowing pet products like Shampoo, Aromatic Oil, Creams, Cosmetic, Liquor , Hygiene Products & liquid food products such as Juice, Honey, Edible Oil, etc.

Our Machines are suitable for hot filling, drinking water, distilleries & pharmaceuticals uses. These machines are equipped with latest technology and designed according to modern demand with enhanced quality & durability with minimum maintenance.

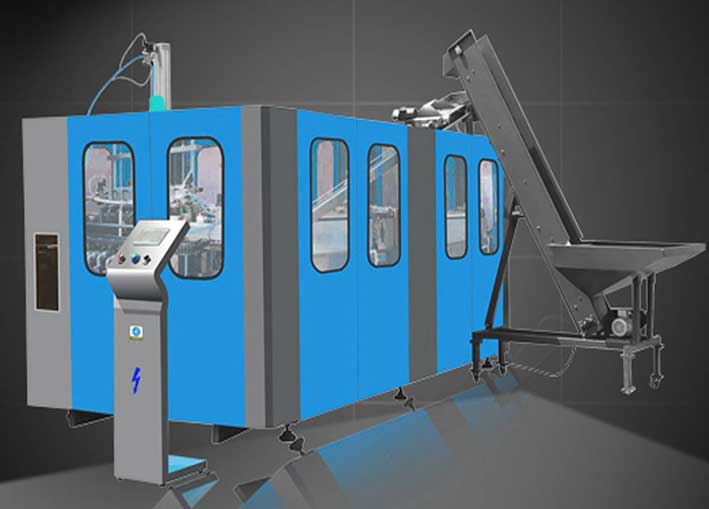

QuickStretch PetBlow-F1

Salient Features

    Production Type: 200ml-2ltrs

  • Production Capacity: 2000 - 6000 bottles/hr
  • Max Dia : 100mm
  • Max. Blow height : 340mm
  • Cavity : 2/4
  • Operating Pressure : 8-9 kg
  • Blowing Pressure 0-35 kg
  • Total Power : 45kw (connected power load)
  • Max. Mould Thickness : 200mm
  • Min. Mould Thickness : 150mm
Close

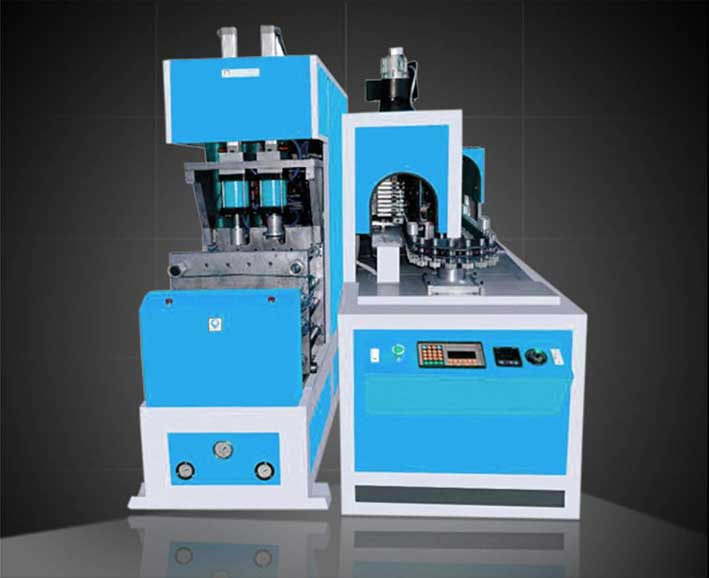

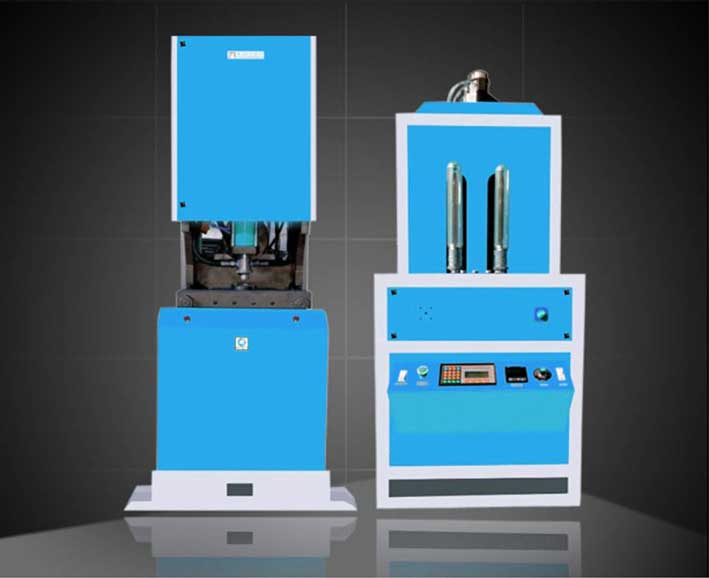

QuickStretch Semi-1ltr

Salient Features

    Production Type: 30ml-1ltrs

  • Neck dia: 25mm - 30mm
  • Production Capacity: 700 - 900 bottles/hr (1ltr)
  • Mould Thickness: 140mm -150mm.
  • Clamping Force: 4 ton
  • Oven:

  • Preform Holders: 16, Heating Zone :1
  • Numbers of Heaters: 6, Power per Heater :2000W
  • Stretching :

  • Stretch Rod: 2, Stretching Cylinder Stroke: 400mm
  • Total Air Requirement : 40CFM
  • Operating Pressure: 8 bar
  • Blowing pressure: 25-30kg
  • Total Power : 14kw (Running consumption 7-8kw)
Close

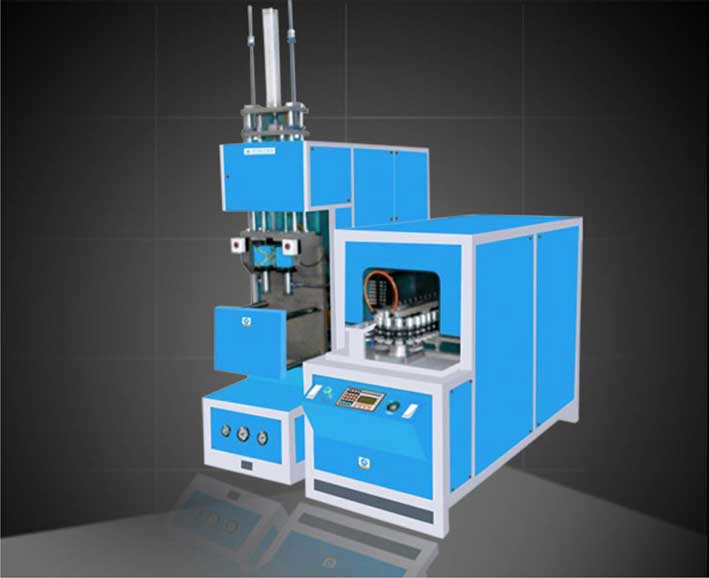

QuickStretch AutoDrop-2ltr

Salient Features

    Production Type: 30ml-2ltrs

  • Neck dia: 25mm - 30mm
  • Production Capacity: 1100 - 1200 bottles/hr (1ltr)
  • Mould Thickness: 170mm -140mm.
  • Clamping Force: 8 ton
  • Oven:

  • Preform Holders: 56, Heating Zone : 1
  • Numbers of Heaters: 6, Power per Heater :1000W
  • Stretching :

  • Stretch Rod: 2, Stretching Cylinder Stroke: 400mm
  • Total Air Requirement : 50CFM
  • Operating Pressure: 8 bar
  • Blowing pressure: 20-40kg
  • Total Power : 14kw (Running consumption 7-8kw)
Close

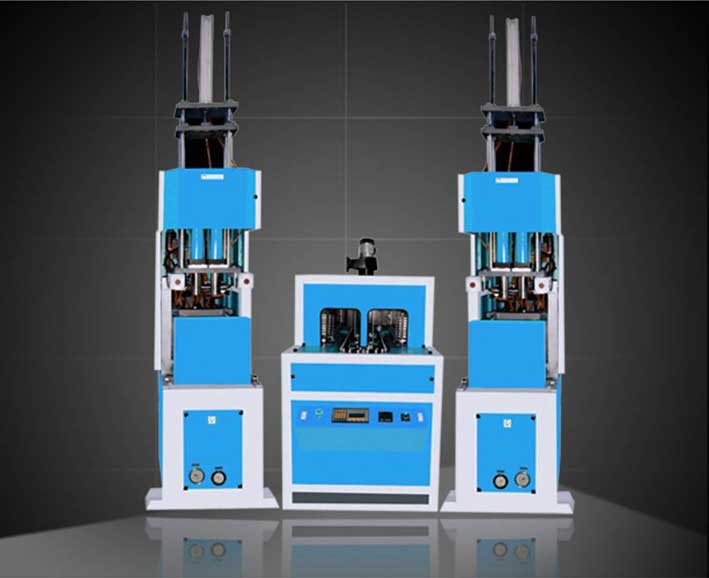

QuickStretch JarBlow-5ltr

Salient Features

    Production Type: 1ltr-10ltrs

  • Neck dia: 25mm - 120mm
  • Production Capacity: 500jars(5ltr)
  • Mould Thickness: 170mm -140mm.
  • Clamping Force: 8 ton
  • Oven:

  • Preform Holders: 26, Heating Zone : 1
  • Numbers of Heaters: 6, Power per Heater :2000W
  • Stretching :

  • Stretch Rod: 2, Stretching Cylinder Stroke: 400mm
  • Total Air Requirement : 60CFM
  • Operating Pressure: 8 bar
  • Blowing pressure: 25-30kg
  • Total Power : 14kw (Running consumption 7-8kw)
Close

QuickStretch Semi-20ltr

Salient Features

    Production Type: 5ltr-20ltrs

  • Neck dia: 30mm - 120 mm
  • Production Capacity: 100-200 jars(ltr)
  • Mould Thickness: 170mm -140mm.
  • Clamping Force: 8 ton
  • Oven:

  • Preform Holders: 20, Heating Zone :1
  • Numbers of Heaters: 18, Power per Heater :2000W
  • Stretching :

  • Stretch Rod: 2, Stretching Cylinder Stroke: 400mm
  • Total Air Requirement : 80CFM
  • Operating Pressure: 8 bar
  • Blowing pressure: 20-40kg
  • Total Power : 20kw (Running consumption 12kw)
Close

Rinsing / Filling / Capping Unit

Blue swan provides a wide range filling machine for water, juices and Soft drinks. Depending on client requirement and budget we provide machines that will provide 40BPM-600BPM.

Machines are customised made and are fully automatic where production remains untouched by human through production process to eliminate any kind of cross contamination. This machine is a rotary mono block where it rinses the bottle either with water or air pressure and fills the same with RO water and cap immediately. The entire process is untouched by human and keeps the production process germs free.

    Common Features

  • Stainless Steel parts 316 quality with life long durability.
  • Cap vibrator elevator for auto cap feeding & UV sterilization of caps.
  • Bottle inspection with no fill if bottle is missing while beverage is being filled.
  • Air sealed filling valve to prevent cross contamination of water or beverages.
  • Online digital display counter for finished product.
  • Machine Design is convenient for operation and plant maintenance.
  • Safety door with acrylic see through doors.
  • Shrink Tunnel Provision.

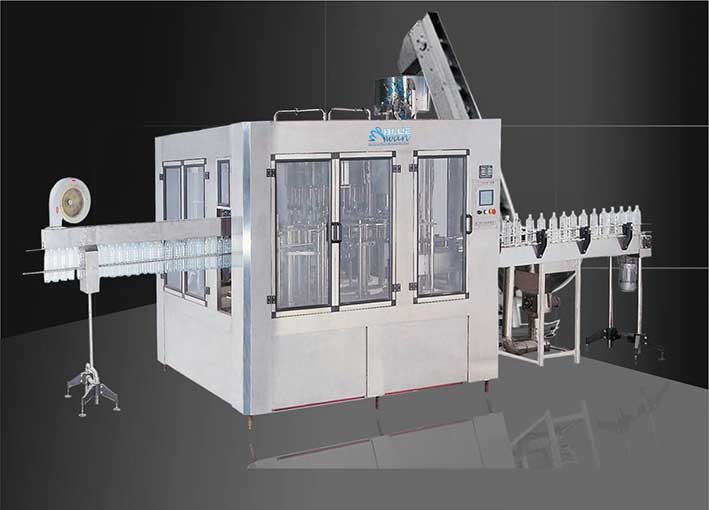

QuickFill Water/Juices/Soft drinks

Salient Features

    Production Type: 200ml-2ltr bottles

  • Production Capacity: 5500-6000 bottles/hr (500ml)
  • Machine Power: Variable as per equipments
  • Machine weight: 2000kg. approx
  • Auto cap feeder
  • Auto bottle feeder
Close

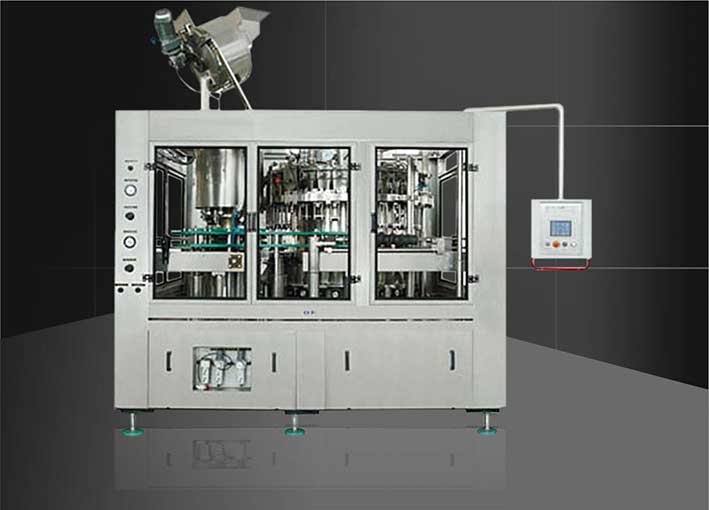

QuickFill CAN Juices/Soft Drinks

Salient Features

    Production Type: 330ml, 500ml CAN

  • Production Capacity: 1000-6000 cans/hr
  • Machine Power: Variable as per equipments
  • Machine weight: 2000kg. approx
  • Auto Can Sealer feeder
  • Auto can Feeder feeder
Close

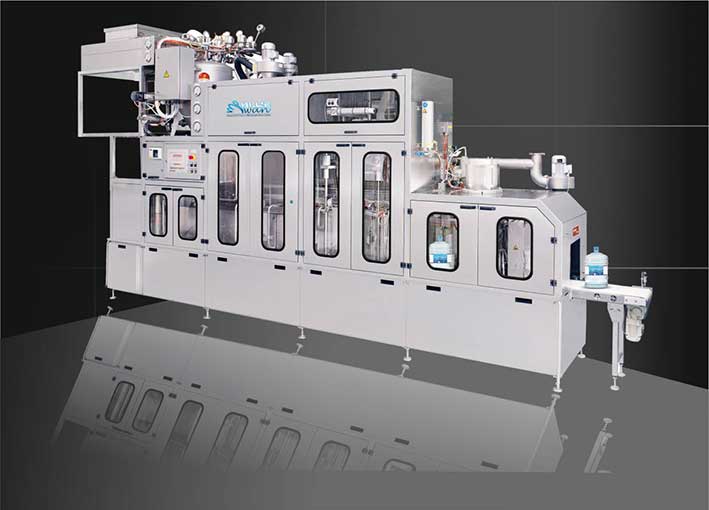

QuickFill 20ltr Water

Salient Features

    Production Type: 20ltr

  • Stainless Steel parts 316 quality with life long durability.
  • Fully automated - No labour required
  • High filling speed
  • Easy operation
  • Sensor to indicate Jar fill
  • Auto Rinsing facility
  • Safety door with acrylic see through window.
Close

Labeling Machines

Blue swan provides a wide range Labeling machines start form BOPP, shrink Sleeves and sticker lableing machines. These machines are customised made or customer choose one from our imported brands.We provide Labeleing machines from ROBATEC (Switzerland)

These labeling Machines can be customised to stick lable on bottles of different sizes and shape. Cirular bottles , square bottles, CAN's and bottles of any shapes.

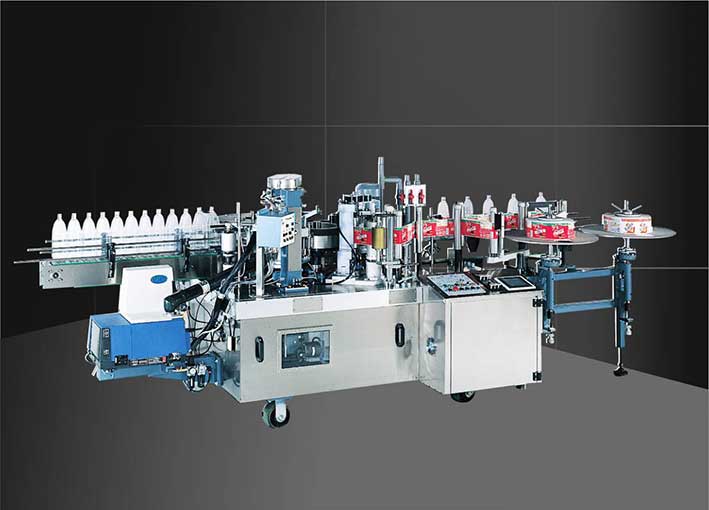

QUICK-BOPP label Applicator

Salient Features

    Labeling Type: 200ml-2ltr circular bottles

  • Automatic BOPP Labelling Machine with HOT MELT GLUE labelling system
  • Machine from ROBATEC (Switzerland).
  • Speed range of 30 BPM - 600 BPM.
  • It is the most economical labelling system.
  • Automatic operations,adjusteble to label bottles of different sizes
  • It has varied production speeds.
  • Superior grade 316 stainless steel for robust build up quality
  • Suitable to label products likes bottles, jars, tin and circular form products.
Close

QUICK-SLEEVE Sleeve applicator

Salient Features

    labeling Type: varied bottle sizes

  • Shrink labeling system without any GLUE
  • Imported machine as well as customised made
  • Speed range of 30 BPM - 600 BPM.
  • It is fast and efficient labelling system.
  • rotary sleeve cuter
  • Automatic operations,adjusteble to label bottles of different sizes
  • Steam tunnel to shrink sleeves to shape of bottle
  • Superior grade 316 stainless steel for robust build up quality
  • Suitable to label products likes bottles, jars, tin and products with different shapes.
Close

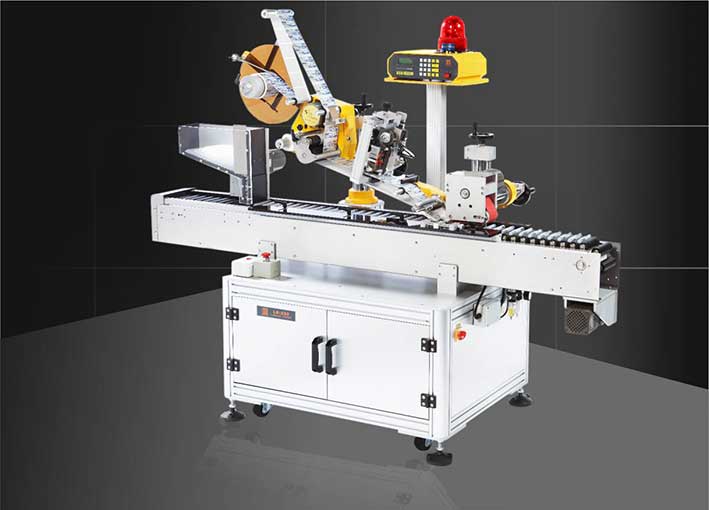

QUICK-STICK Sticker labeler

Salient Features

    Labeling Type: all kinds

  • Stainless Steel parts 316 quality with life long durability.
  • Fully automated - No labour required
  • Single and Dual sticking
  • Speed range of 30 BPM - 600 BPM.
  • It is fast and efficient labelling system.
  • stick on all kinds of bottles and of any shape
  • varied sticking speed
  • Auto sticking adjustment
Close

Packaging Machines

Shrink Packaging machine are very cost effective lot packaging system. It is preferred to Box packaging as it saves space and are weather proof. It has shrink tunnels that uses heated air system. Shrinkable films like PE, POF or PVC applied by L-bar sealers and sleeve wrappers.

It is very effective space saving and high productivity packaging machine. It is used to shrink pack food in tin, pet boxes, packaged drinking water, beverages, house appliances, computer industries, etc.

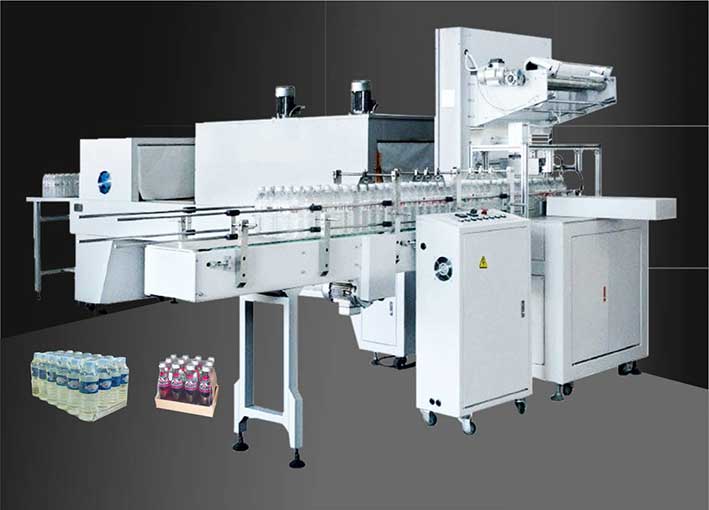

QUICK-SHRINK-qs100

Salient Features

    Packaging Type: Various sizes

  • Control: PLC / HMI
  • Tunnel Feed Conveyor: app. 4-11 m/min
  • Packaging Type: Full packaging
  • Packing Material: PE/POF/PVC film
  • Power Supply: 380V
  • Air Supply: 6~8kgf/cm2
  • Shrinking tunnel: 4000mm
  • Heating Power Consumption: App. 25Kw max.
  • Cooling Fans: 1 Group
  • Product Transport Conveyor: app. 6m/min
  • Temperature: 100'C-220'C
  • Production capacity: 3-12 pack/mnt
Close

Accessories

Apart from our regular beverage manufacturing products we also provide various accessories that is required for smooth functioning of the plant. These includes automation systems, ozone generators, UV filtrations, conveyors, Water storage tanks and power pumps.

These accessories are either premade and are form branded companies or we make customised as per client requirements.

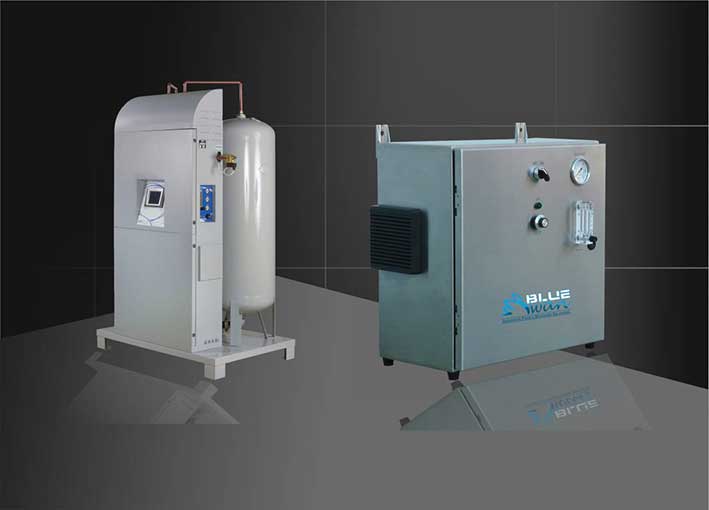

Oxygen & Ozone Generator

Salient Features

  • Has a greater disinfection effectiveness against bacteria and viruses.
  • The oxidizing properties reduces Iron, Manganese & Sulphur concentration
  • Reduce or eliminate taste and odour problems
  • Insoluble particles are then removed by post-filtration
  • Customised made
  • Uses:

  • Can be used befor & after RO filteration process.
Close

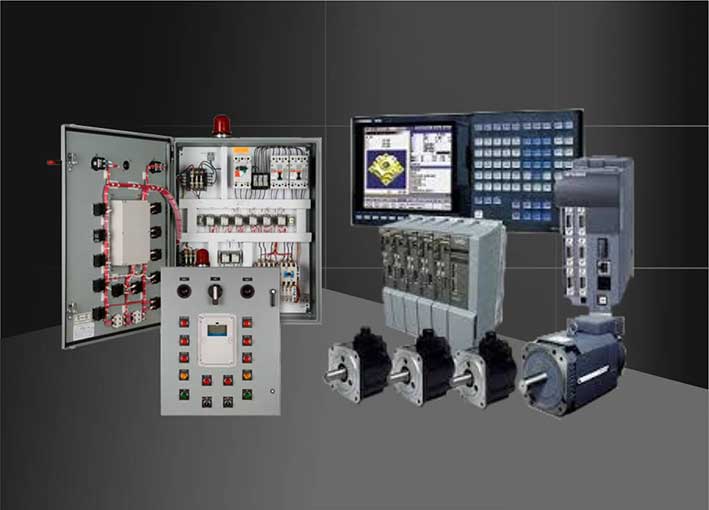

Automation Devices & Sensors

Salient Features

  • Full automation or Machine wise Automation
  • Entire line with SCADA system for the established production system.
  • Entire production process can be managed from one location.
  • Our automation instruments are made by using the best available component in the world.
Close

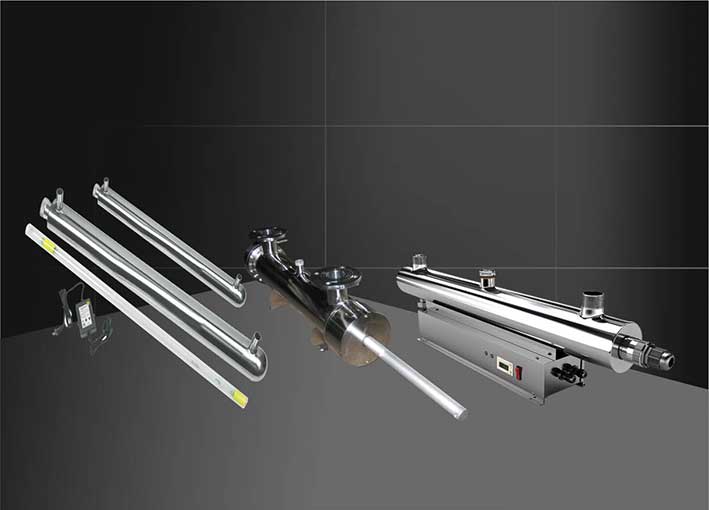

Industrial UV filters

Salient Features

  • UV disinfection is 99.99% effective
  • suitable for the disinfection of water able to deactivate microbiological pollutants
  • High quality low pressure/high-output.
  • Kills all bacteria / viruses during fitleration process
  • Uses:

  • Added before and after RO filteration process
Close

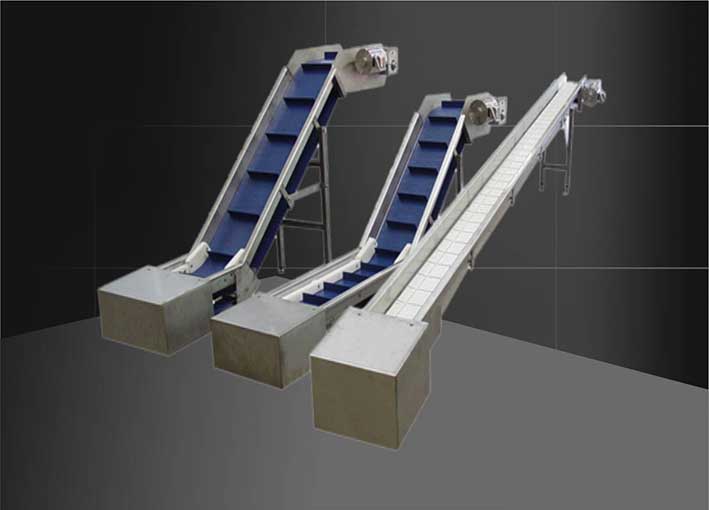

Conveyors QUICK-DRIVE- QDL100

Salient Features

  • Servo motors used for drive.
  • cutomised made as per requirement
  • various mode available
  • Stainless steel 366 material used
  • made to carry different weight ratio
Close

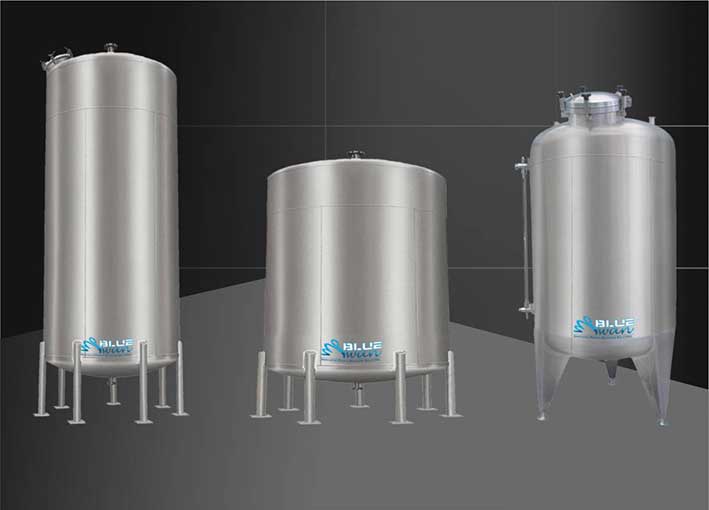

Storage Tanks QUICK-STORE- QDL100

Salient Features

  • Stainless Steel parts 316 quality with life long durability.
Close

Power Pumps QUICK-PUMP- QPL100

Salient Features

  • High efficient and low maintainance
  • Imported Pumps from Germany
  • Mould Thickness: 170mm -140mm.
  • High Durability
  • comes with plant or bought separately
Close
